Aluminium Alloy Disc Brake Bike Frame 27.5er 29er Full Suspension Mountain Bike Frame 15.5"/17"/18" DH/AM Softtail Frame 12x148mm Thru Axle Boost Frame with Shock Absorber(White,15.5x29'')

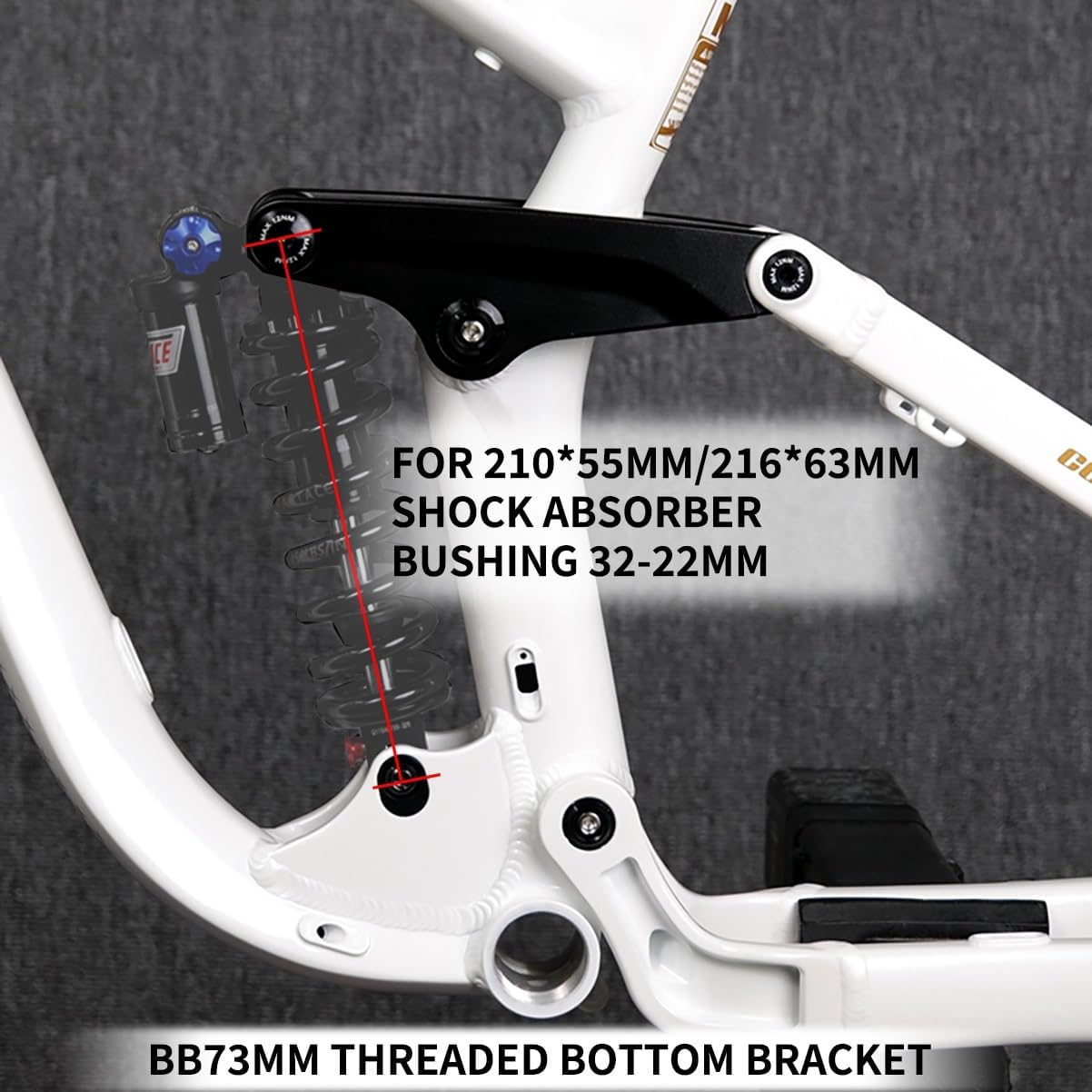

Aluminum Alloy Full suspension Mountain Bike Frame 27.5er 29er DH XC AM Soft Bike Frame 15.5''/17''/18'' 12 * 148mm Thru Axle Frame Disc Brake Routing Internal.Perfect gift for bike lovers, can be assembled with your friends.Bikes frame Specifications:Frame higth：15.5",17",18"Material: Aluminum AlloyHeadset: 44*55mmSeatpost: 30.9mmSeatpost Clamp: 34.9mmBOOST thru-axle: 12*148mm( 142mm thru-axle can be installed with adapter )Bottom Brackets: BSA BB73mmBrake: A-pillar disc brake, PM 75mm, Directly mounted with 180mm disc brake rotor, 203mm requires an adapter seat.Rear wheel travel: 155mmbike forks travel: 160mm（Supports Straight Tube or Tapered Tube forks）Shock absorber: 210*55mm (oil spring or air pressure); 216*63mm(air pressure)Bushing: 32-22mmChainring: 30/32/34T(Max 34T)Compatible chain guide: 05 specificationCable : external routing/internal routing（Internal and external routing are available）For wheel：27.5''/29" wheelsMaximum tire width: 29*2.5"(27.5*2.8")Weight: about 3750gLevel: DH/AM/ENDUROManual Remote 210MM Air Rear Shock Absorber: Material: 7075+6061 Aluminum AlloyTravel: 53mmBushing: 24mmWeight: about 296gFeatures: Three-stage locking system/Damping Adjustment/Air Structure/Soft and Hard AdjustmentPackage: Frame Rear Thru axle leverheadset Seatpost Clamp Derailleur Hanger Cable ClipRear Shock AbsorberNote:1. Please allow slight dimensional tolerances due to manual measurements, lighting in photography may cause color differences from real life.2. Please double check the size details in our list according to your actual situation to make sure you buy the right bikes frame.3. If you have any product and service questions, please contact us and we will get back to you within 24 hours.

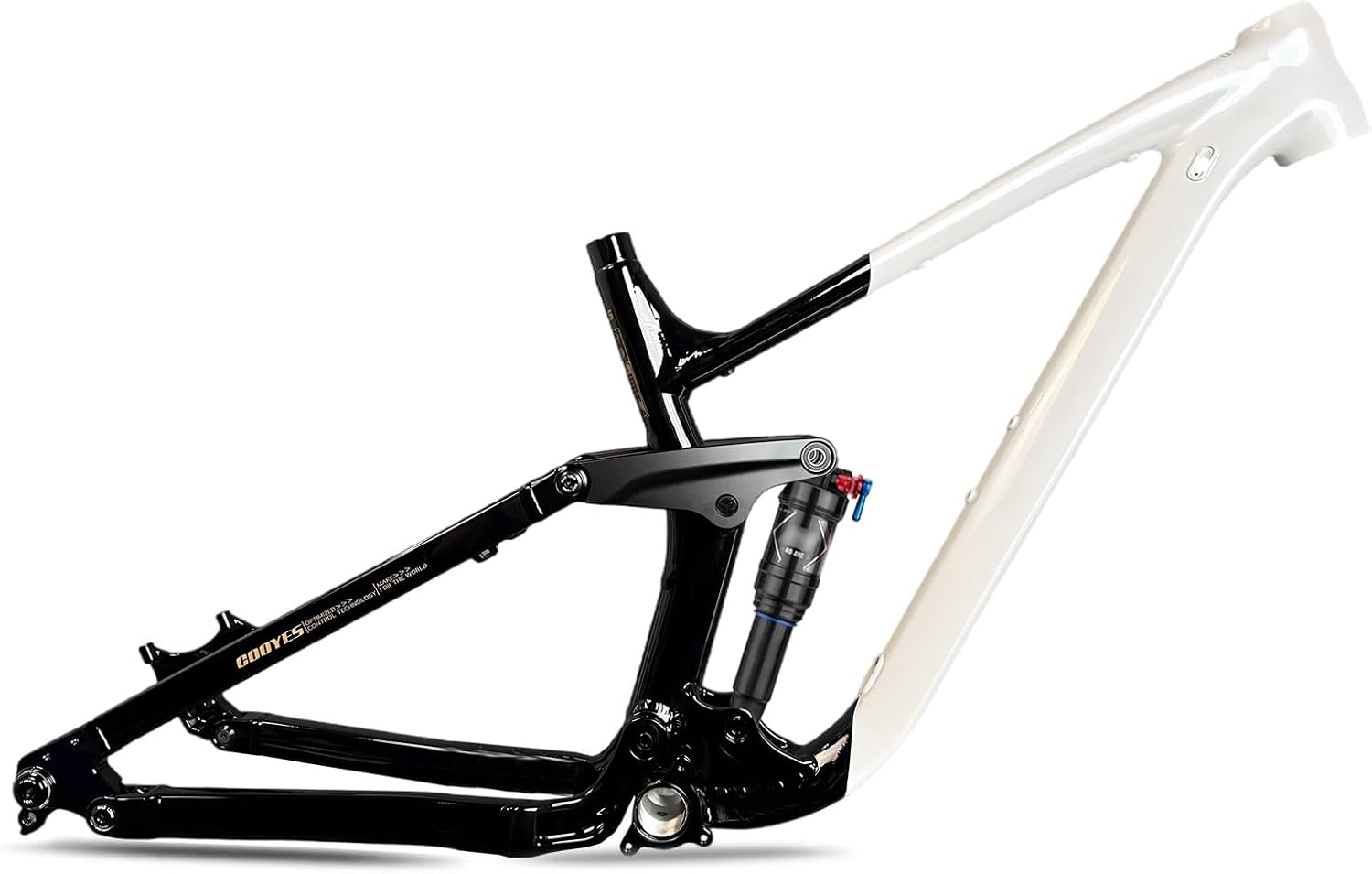

• Full suspension Bike Frame: Height 15.5"/17"/18" . 27.5/29er DH/AM soft tail frame. Popular among riders.The frame weight about 3750g.
• Downhill Mountain bike Frame: Supporting 44-55mm headset, Seatpost 30.9mm, Seatpost Clamp 34.9mm, threaded bottom bracket BSA BB73mm. Rear wheel travel 155mm, Fit for bike forks travel 160mm
• Rear Shock Absorber: 210mm air pressure Shock Absorber. Travel 53mm, Manual Remote, American valve. Its three-stage locking system, this shock absorber provides enhanced stability and control, ensuring maximum safety and comfort while riding. Damping Adjustment, Pneumatic Structure, Soft and Hard Adjustment. Can reach the highest air pressure up to 275psi!
• Disc Brake Frame: DH/AM/ENDURO bike frame disc brake A-Pillar 75mm,Directly mounted with 180mm disc brake rotor. 12*148mm BOOST Thru Axle, can fit outer tire max width 27.5*2.8", 29*2.5".
• Aluminum Alloy Frame: High-strength aluminum alloy material, fish scale welding process, Lightweight aluminum alloy has good welding performance,so that the frame has a high strength.Package Includes frame (Shock absorber not included), Rear Thru axle lever, headset, Seatpost Clamp, Derailleur Hanger and Cable Clip.
