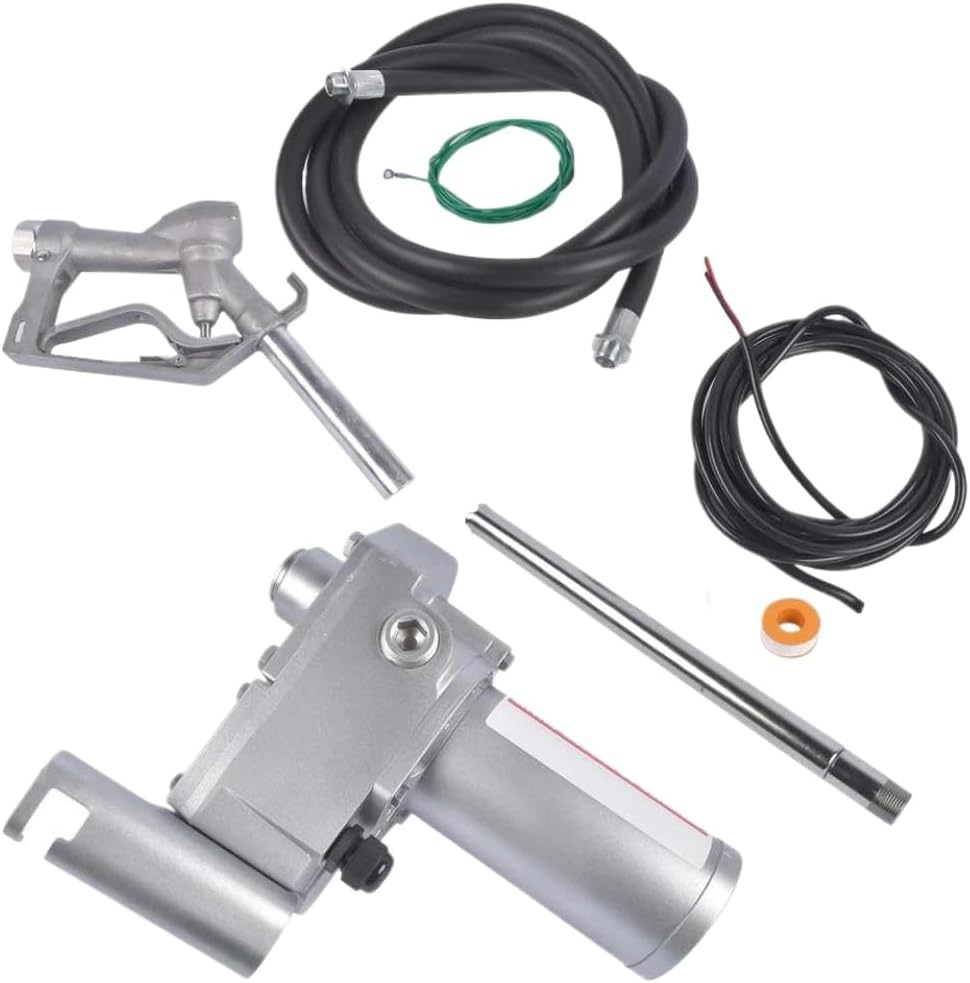

Fuel Transfer Pump 12V DC 15 GPM 1/5 Gear-Type With Auto Shut-Off Fuel Nozzle Compatible With Diesel Kerosene Transformer Fuel

AP03 Fuel Transfer Pump 12V DC 15 GPM 1/5 Gear-Type with Auto Shut-Off Fuel Nozzle for Diesel Kerosene Transformer Fuel Specification Maximum Flow: 15 GPM Horsepower: 1/5 Input Voltage: DC 12V Outlet Hose Length: 13 ft / 4 m Fuel Inlet/Outlet Diameter: 1 inch NPT / 3/4 inch NPT Applicable Fuel: Diesel, Kerosene, Transformer Oil Lift Height: 33 ft / 10.06 m Suction Lift: 8 ft / 2.44 m Inlet Hose Length: 21.1–38.2 in / 535–970 mm This fuel transfer pump features a 1/5 brushless motor delivering a maximum flow rate of 15 GPM, a maximum head of 40 ft, and a suction lift of 11.5 ft.It can transfer a 55-gallon drum in less than 4 minutes.The pump housing is constructed from die-cast aluminium, providing strength and corrosion resistance.It includes overload protection and a bypass valve to prevent damage from overflow or excessive pressure.The pump should be operated for no more than 40 minutes continuously, followed by a 20-minute cooldown period.Gear-driven design enables efficient fluid transfer while friction and wear, reducing maintenance requirements and supporting consistent flow and pressure during extended.The aluminium fuel nozzle allows precise control of fuel flow rate and quantity, supporting smooth and accurate delivery.Overload protection automatically shuts off the pump when the load exceeds safe limits, preventing overheating and reducing motor strain.If the fuel delivery hose becomes clogged, the bypass valve maintains continuous fuel flow and prevents excessive pressure buildup.Package includes: 1 x Pump 1 x Outlet Hose 1 x Telescopic Rod 1 x Manual Fuel Nozzle 1 x Power Line 1 x Ground Wire 1 x Fuel Barrel Joint 1 x Thread Tape 1 x User Manual 2 x Joints

• Model AP03 is a 12V DC fuel transfer pump designed for portable and vehicle-mounted applications
• Delivers consistent flow at up to 15 gallons per minute for efficient fuel handling across multiple tank transfers
• Gear-type construction ensures with diesel, kerosene, and transformer oil—compatible with non-corrosive hydrocarbon fuels
• Integrated auto shut-off fuel nozzle enhances and during refueling by stopping flow when the tank reaches capacity
• Compact and rugged design supports use in workshops, farms, construction sites, and response vehicles
