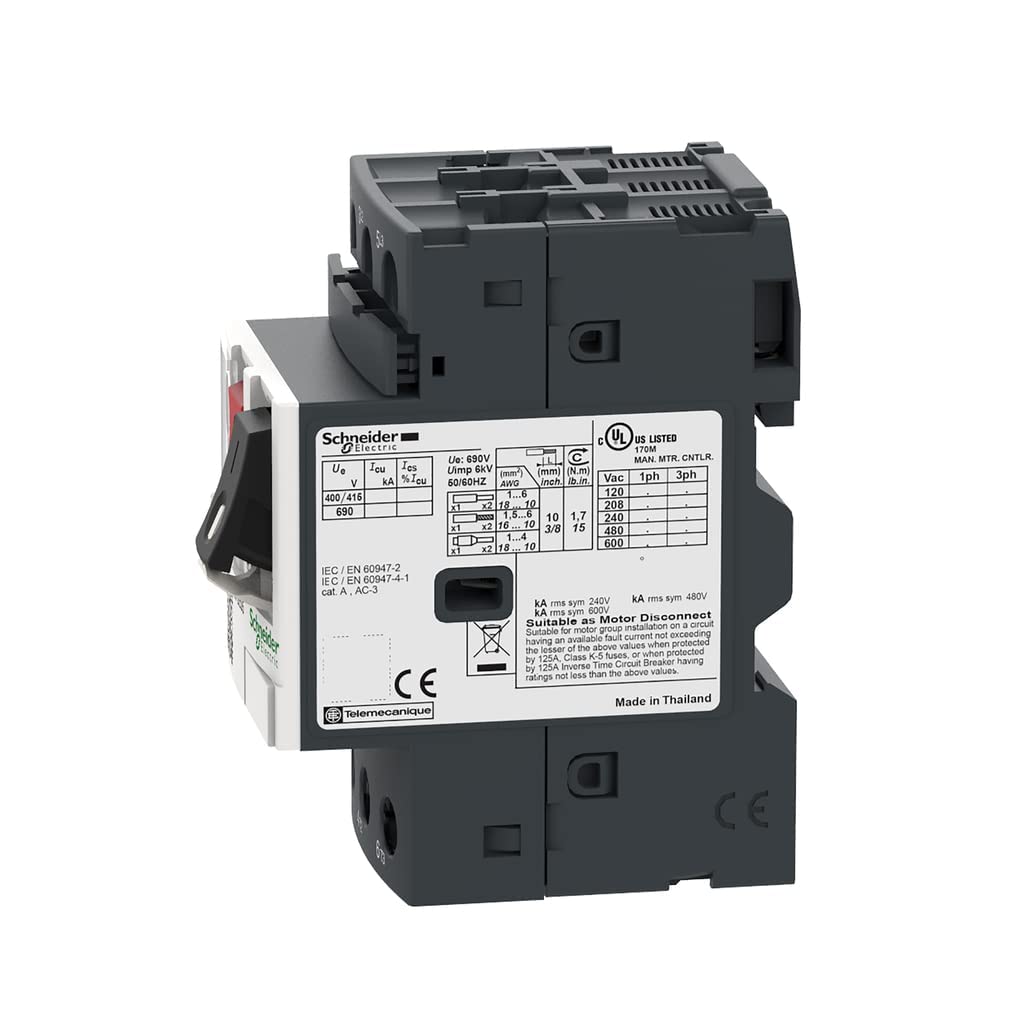

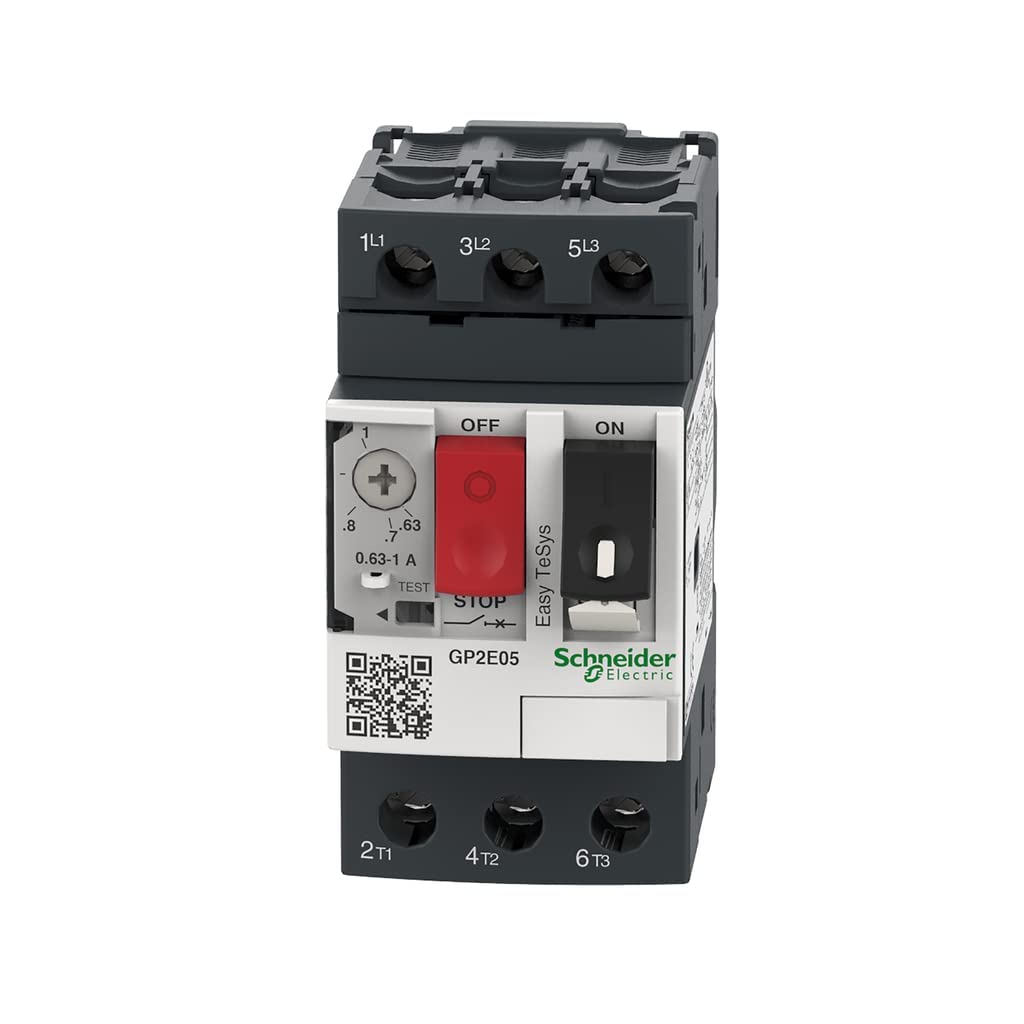

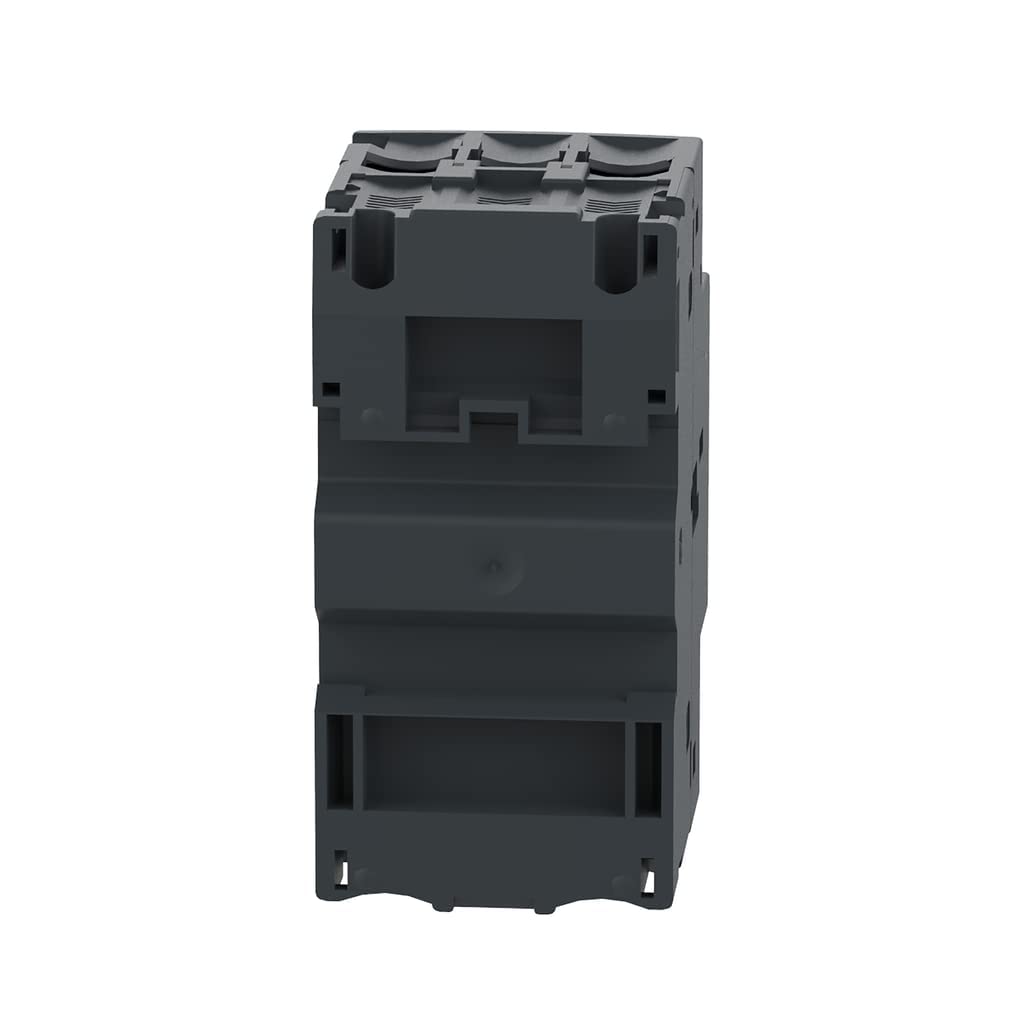

Schneider Electric GP2E05 Easy TeSys 3 Phase Manual Thermal Magnetic Motor Starter, 3 Pole, Screw Clamp Terminals, Push Button, 0.63-1 Amps

Easy TeSys manual motor controller, 3 poles (3P), 1A/690V, for 3-phase motor applications 0.25kW@400V. It provides a thermal-magnetic protection with a thermal setting range 0.63-1A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, cUL), Green Premium compliant (RoHS/REACh).

• This thermal magnetic starter has up to 20HP, an operational and insulation voltage of 690V AC 50/60 Hz, for 3-Pole electrical motors used in HVAC, elevators, pumps or compressors, and agriculture
• This manual starter has a push button On/Off operation and reset switch; has a robust performance of up to 100,000 cycles AC-3 440 Volts
• It features a compact and modular design, reduced installation time, and provides motors with essential control & protection
• Use with Schneider Electric auxiliary contact block GPEFC11, mounting adapter GV2AF3, busbar GV2G445, enclosure GV2MC01 or GV2MC02 and contactor DPE09G7
• Flexibility to add motor disconnects to help met NEC is IEC and cUL certified and green premium compliant (RoHS/REACh)
